ProTek RC 215LPT Low Profile High Torque Metal Gear Servo (High Voltage)
Choose 'Description' drop down on the left or below for more details!
ProTek RC 215LPT Low Profile High Torque Metal Gear Servo (High Voltage) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
Read the Blogs for handy information!
Delivery and Shipping
Delivery and Shipping
Free shipping on orders over $150!
ProTek RC 215LPT Low Profile High Torque Metal Gear Servo (High Vol...
Description
Description

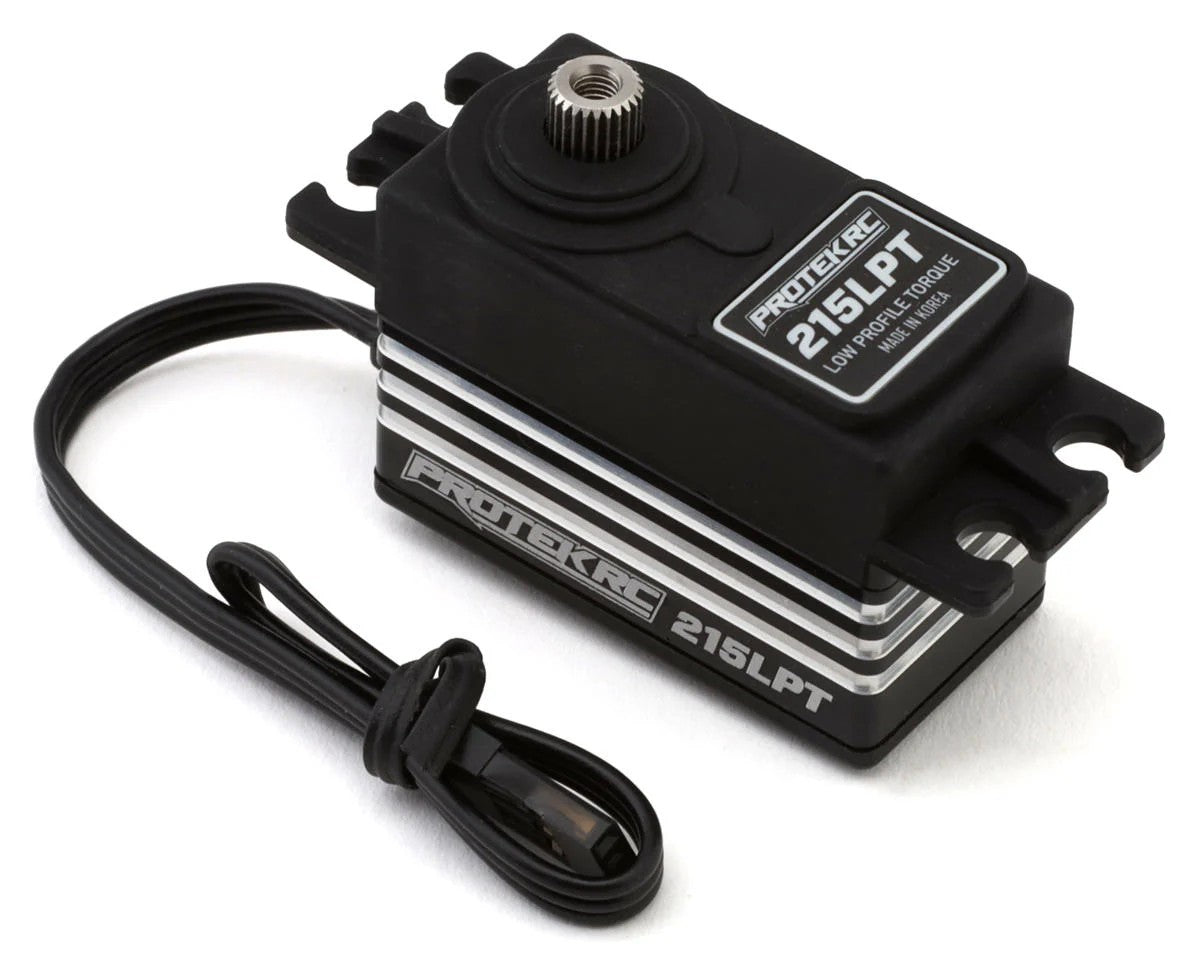

ProTek RC 215LPT Low Profile Racing Servo
Need high performance in a compact package? The ProTek RC 215LPT Low Profile High Torque Metal Gear Servo is engineered for racers who need fast response, high torque, and dependable performance in a compact package. Designed for 1/12 and 1/10 scale vehicles, it combines lightweight construction with durable components to meet the demands of competitive driving. Its refined design delivers reliable operation while fitting applications where installation space is limited. Built with performance and longevity in mind, it is an excellent option for a wide range of on-road and off-road vehicles. Backed by a Lifetime Gear Warranty through Amain Hobbies for added confidence and durability.
About the ProTek RC 215LPT Low Profile Servo
Refined High-Torque Performance
The 215LPT builds on the proven ProTek R/C 140T Low Profile Digital High Torque Servo with increased torque output, faster response, and enhanced reliability. A precision metal gear train works alongside dual ball bearings to provide smooth, consistent operation, while the high-voltage circuitry helps maximize performance under demanding racing conditions.
Compact Low-Profile Design
The low-profile case allows the servo to fit vehicles where space is limited without compromising output. Lightweight construction reduces unnecessary weight, and the aluminum center case efficiently dissipates heat to help maintain dependable performance during extended use.
Built for Competitive Racing
Designed with racers in mind, the 215LPT balances speed, durability, and value for competitive 1/10 and 1/12 scale applications. Flexible installation options make it easy to integrate into a variety of chassis, while its robust construction is built to withstand the rigors of frequent track use.
Features:
- Lifetime Gear Warranty Backed by Amain Hobbies
- Low-profile design saves space and reduces weight
- Up to 230 oz-in of torque at 8.4V for strong steering power
- Ultra-fast 0.07-second transit speed for quick response
- Full metal gear train provides lasting durability
- Dual ball bearings deliver smooth and precise operation
- Aluminum center case helps improve heat dissipation
- High-voltage circuitry supports increased performance output
- Perfect choice for 1/10 off-road and on-road racing
- Coreless motor delivers efficient and reliable performance
Includes:
- (1) Lifetime Gear Warranty
- (1) 215LPT Low Profile Metal Gear Servo
- (1) Aluminum Clamping Servo Horn
- Servo Hardware and Grommets
Specifications:
| Application | 1:10 & 1:8 Off-Road |
|---|---|
| Operating Voltage | 6.0V - 7.4V |
| Operating Temperature | 14° to 140° F (-10 to +60° C) |
| Operating Speed @ 6.0V | 0.010/60° sec |
| Operating Speed @ 7.4V | 0.08/60° sec |
| Operating Speed @ 8.4V | 0.07/60° sec |
| Dynamic Torque @ 6.0V | 185oz-in (13.3 kg-cm) |
| Dynamic Torque @ 7.4V | 215 oz-in (15.5 kg-cm) |
| Dynamic Torque @ 8.4V | 230oz-in (16.6 kg-cm) |
| Motor Type | Coreless Motor |
| Output Shaft | 25T |
| Gears | Metal w/Lifetime Gear Warranty |
| Weight | 1.75oz (49.8g) |
| Pulse/Frequency | 1520s / 333hz |
| Dimensions | 1.55x1.2x0.78in (39.50x30.5x20mm) |
| Length (Bottom to Mount) | 0.77in (19.7mm) |
