4S Regenerative Discharger System (DX6)

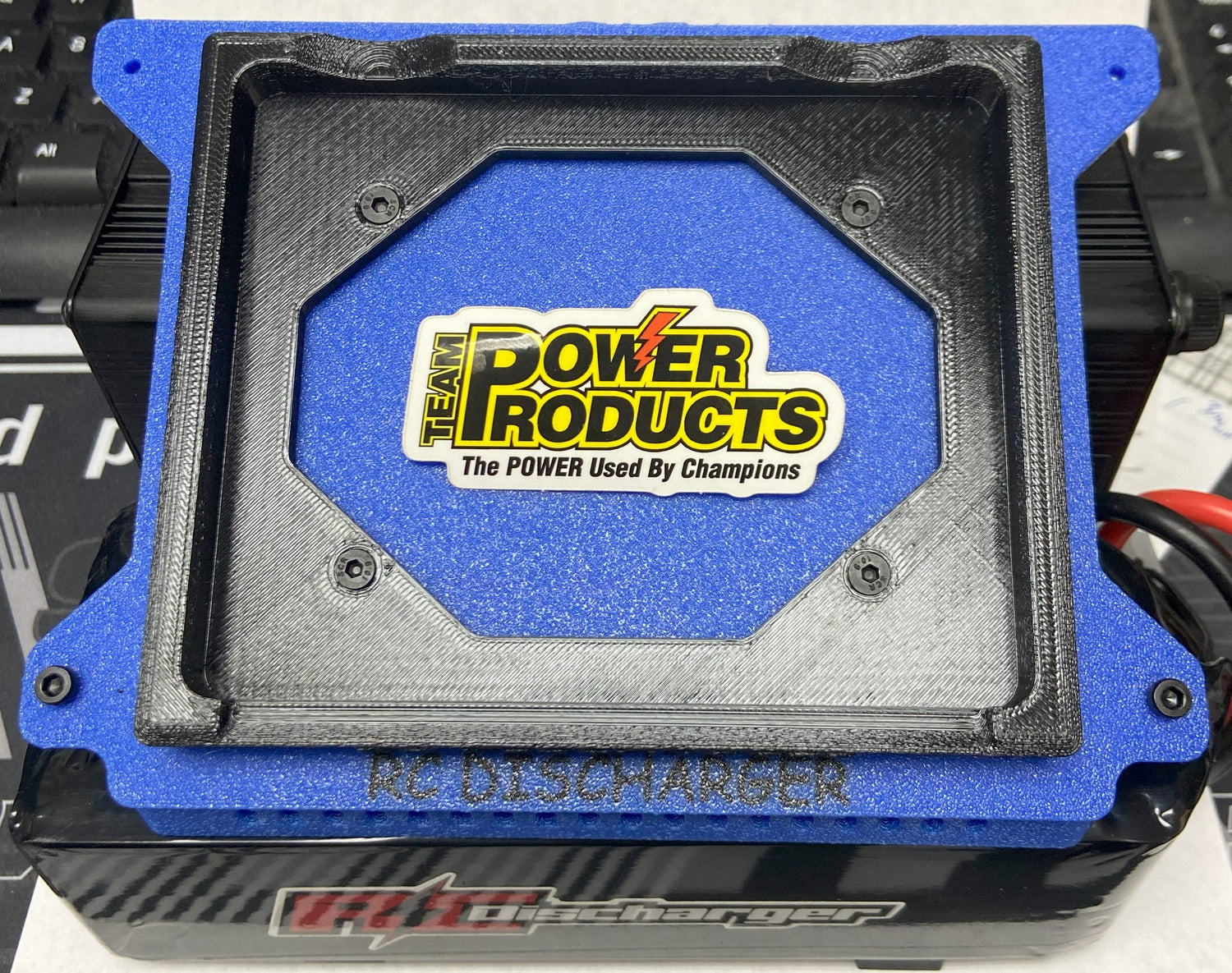

This is a complete Regenerative Discharger (ReGen) system designed by RC Discharger and is works (in conjunction with a DX6 iCharger, charger not included) to cycle, condition, lower IR, and other performance enhancements for up to two 2S packs at the same time. It includes a compact stand (to hold the DX6 iCharger, ReGen device, integrated power supply, and battery), and cables.

If you purchase a DX6 iCharger from Team Power Products along with this Regenerative Discharger system at the same time, we can setup and test the complete system as an extra cost service; click HERE for the DX6-ReGen Bundle!

All of the iCharger models (S6 & X6 can do one 2S pack) have had this capability, but gathering all the extra parts, cables, regen power supply packs, power supply, etc. is an adventure! Unless you also have a stand, the DX6 charger and the ReGen device takes a lot of space when laid out when you do it yourself. Then adjusting the myriad settings to make your new system work is another day of study.

RC Discharger ReGen system here has everything you need (except iCharger) in one box, including a power supply (you do not need an extra power supply for the iCharger) and iCharger DX6 adapter. There is some soldering required to add a power connector to the DX6 power input (XT90) cable from the ReGen system (we can do that before we ship, choose option below). When used with the DX6, you can charge, discharge, cycle, condition TWO 2S packs at the same time, at much higher rates than available in the standard DX6. Other models, such as X6 and S6, can do a single 2S pack only and requires a different ReGen system (send a request and I will quote you).

This unit may be used with other duo iChargers (308, 4010, etc.). The difference is the mount holding the iCharger in place on the unit (our system shown here has the DX6 mount already installed, no extra cost). If you desire to use a different duo iCharger model, choose from the extra cost option below and we will acquire the appropriate mount (NOTE: A different mount will take seven business days from date of payment to obtain and is additional cost, see below for options).

More Info:

RC Discharger’s Regenerative Discharger Version 2, up to 4S (or 2 x 2S): A Revolution in Battery Management!

Are you tired of conventional battery dischargers that limit your charging capabilities? Look no further! The RC Discharger’s Regenerative Discharger is here to transform your RC battery experience. Let’s dive into the exciting features of this groundbreaking product:

• Compatibility Beyond Limits: Our Regenerative Discharger is the first-ever battery discharger compatible with all Junsi iCharger models, including the 456DUO, 458DUO, 4512DUO, 406DUO, 308DUO, 4010DUO, DX6, DX8, DX12, S6, X6, X8, and X12. Whether you’re a RC car national driver or a Sportsman looking for another edge, this compatibility ensures seamless integration with your existing setup.
• Dual Charging Power: Don’t lose one output for a resistor bank! Imagine cycling, discharging and/or charging two 2S batteries simultaneously up to 45A (about 30a with DX6, may vary) using both outputs at the same time on your iCharger DUO. Does the work of 2 resistance banks with 2 iCharger DUO. The RC Regenerative Discharger makes this dream a reality.
• Synchronous Mode Advantage: Unlike any other discharger, ours is compatible with the Synchronous mode of your iCharger DUO, allowing you to discharge a battery 2S up to 70A. Say goodbye to limitations and hello to unprecedented power management.
• All-in-One Solution: No need for a second device to test and compare your batteries’ capacity and internal resistance. With Regenerative technology, you’ll achieve a lower internal resistor compared to a traditional resistor bank.
• Internal Resistance Reduction: At 30A/32A/40A/45A/50A/70A (again, about 30a for the DX6) cycles, our discharger significantly reduces your battery’s internal resistance. The result? More speed, power and longer battery life. Check out our test videos for proof!
• Be eco-responsible: Are you tired of replacing your RC batteries every six months? Consider this eco-friendly alternative: cycle management. By optimizing your battery usage, you can significantly prolong their lifespan while minimizing waste.
• Eco-Friendly Energy Recovery: Our product doesn’t just discharge; it’s environmentally conscious. It recovers energy during discharge and reuses it during charging. Efficiency meets sustainability!
• Space-Saving All-in-One Design: Our clean and neat design features short wires and optimizes space. It holds both the charger and power supply, streamlining your setup.
• No Resistor Banks, No Hassle: Forget about disconnecting resistor banks after discharge. Our discharger works seamlessly with the Cycle mode on your iCharger S6/X6/X8/X12. No fuss, no resistors, and no excessive heat.
• Ready to Use, Plug-and-Play: Simply plug your iCharger into our RC Regenerative Discharger, and you’re good to go. No complicated setup—just efficiency at your fingertips.

Get ready to revolutionize your RC battery management with the RC Discharger’s Regenerative Discharger. Power up, sustainably!

Regenerative Discharger usage directions and specifications:

• Cycle Mode: Utilize only the “Cycle” mode on your charger. This mode automatically discharges and then charges your battery. It helps maintain battery health and balancing cell voltages.
• Storage Mode: At the end of the day, switch to the “storage” mode. This mode maintains the battery at an optimal voltage level for storage. It’s especially useful when you won’t be using the battery for an extended period.
• Single Battery Per Car: For optimal performance, dedicate one battery per car. Avoid alternating between multiple batteries. This consistency helps maintain balanced cell voltages and extends battery life.
• Avoid Excessive Discharge: Do not use several times in a row on the “Discharge” mode from your charger.

*All iChargers shown for reference only. iCharger is not included with the Regenerative Discharger. **With the iCharger DX6/DX8/DX12/X6/X8/X12 or the 308DUO you can discharge or charge at 30A . ***1S-2S only with the Synchronous Mode icharger.  50A on iCharger 308DUO, DX6, DX8, DX12 and 70A on iCharger 456DUO, 458DUO, 4512DUO, 406DUO and 4010DUO.

Troubleshooting information HERE.
