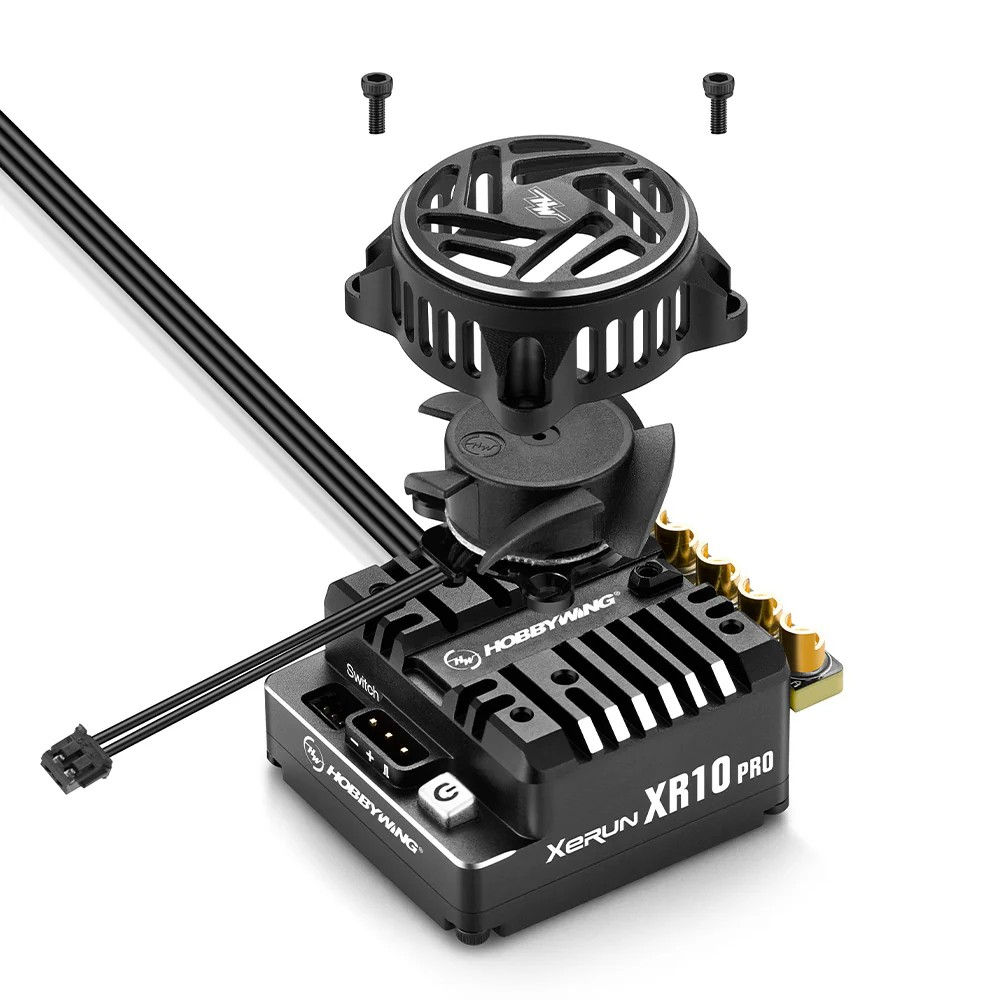

Hobbywing XR10 PRO G3 ESC - Modified Racing

Click HERE for manual.

• HOBBYWING XR10 PRO G3 ESC is specifically engineered and designed for 1/10th Modified class racing, offering optimized performance and precision control tailored to meet the demands of competitive racing. With advanced features and customizable settings, it ensures exceptional power delivery and responsiveness, giving racers a distinct edge on the track.
• 13GA wire is included.
• The XR10 PRO G3 ESC is equipped with Hobbywing’s patented technology, Reverse Polarity Protection (RPP). In the event of mistakenly connecting the power wire backward, while conventional external capacitor packs may be damaged, the revised connection will not harm the ESC.
• Three selectable profiles are available for all 1/10th RC car racing. To accommodate various racing conditions, the firmware includes three easy-to-select preset modes. Users can customize and rename these modes to suit their control preferences, track conditions, etc. For example, ‘1/10 On-Road’ can be renamed to ‘ROAR2025_MOD_4.5’ to indicate a race using a 4.5T motor at the 2025 ROAR event. These profiles can be saved for future reference.
• An internal electronic key switch ensures long service life and high reliability, while the external switch port allows for the connection of an external switch (not included, sold separately), offering flexibility for various installations.
• The separate programming port can power an external fan or connect to an LCD Program Box Pro or OTA Programmer for the ESC.
• Variable frequency regulation of PWM and brake frequencies allows users to precisely control the driving and braking forces of the motors.
• The softening function, Patent developed by HOBBYWING, enhances power delivery tuning and improves driving efficiency.
• Disc Brake mode, an innovative feature by HOBBYWING, provides smoother and stronger braking performance..
• Multiple protections include Patented RPP (Reverse-Polarity-Protection), LVC (low-voltage cutoff protection), ESC and motor thermal protection, and fail-safe (throttle signal loss protection).
• The ESC features a built-in data recording module, eliminating the need to constantly connect to the OTA Bluetooth module. After use, connecting to the OTA Bluetooth module allows users to view various performance data.
